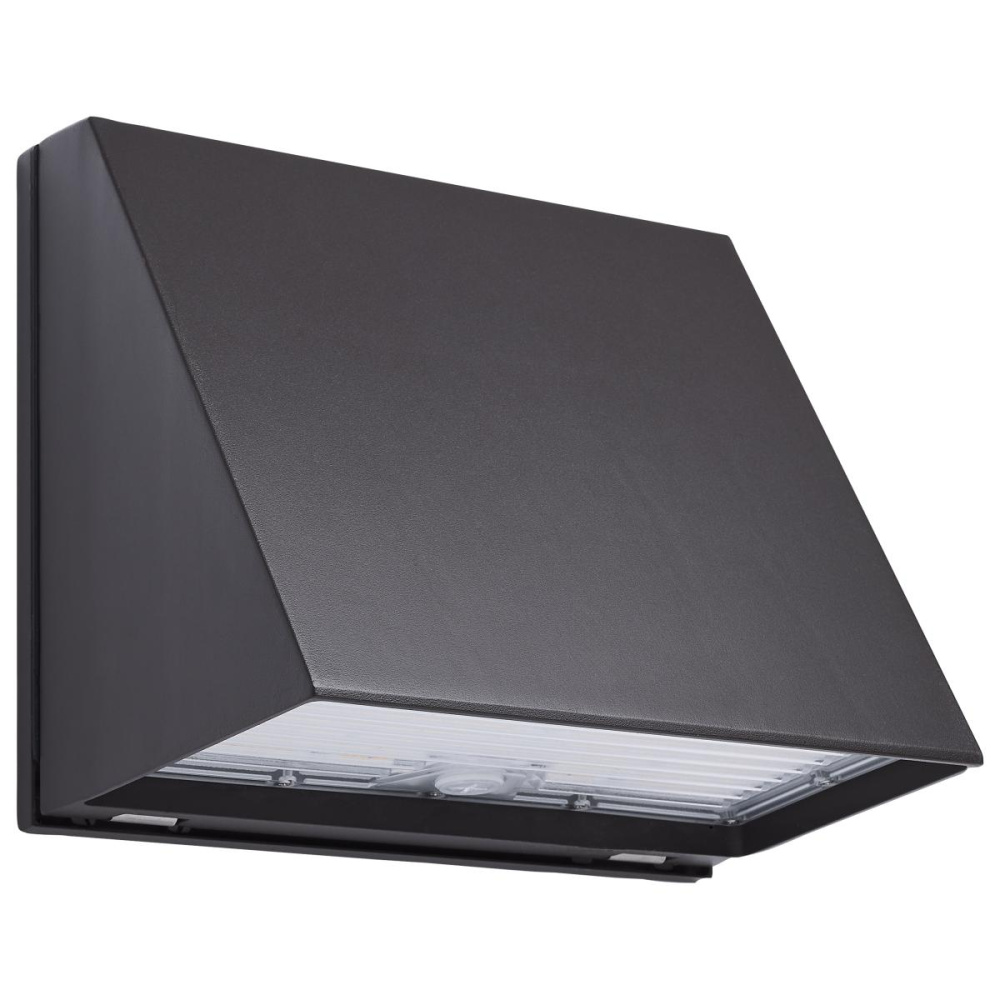

20/40/60 Watt LED Cutoff Wall Pack; 3K/4K/5K CCT; Field Selectable; Bronze; 120-347 Volt

Part Number: 40JMQQJ

20/40/60 Watt LED Cutoff Wall Pack; 3K/4K/5K CCT; Field Selectable; Bronze; 120-347 Volt

$256.65 CAD

Item Sales Info

Add To Wishlist

Compare Item

Availability

Our supplier has 257 in stock. The ETA is 3-5 weeks when orders are placed beyond store stock. Please see our Terms and Conditions for details.

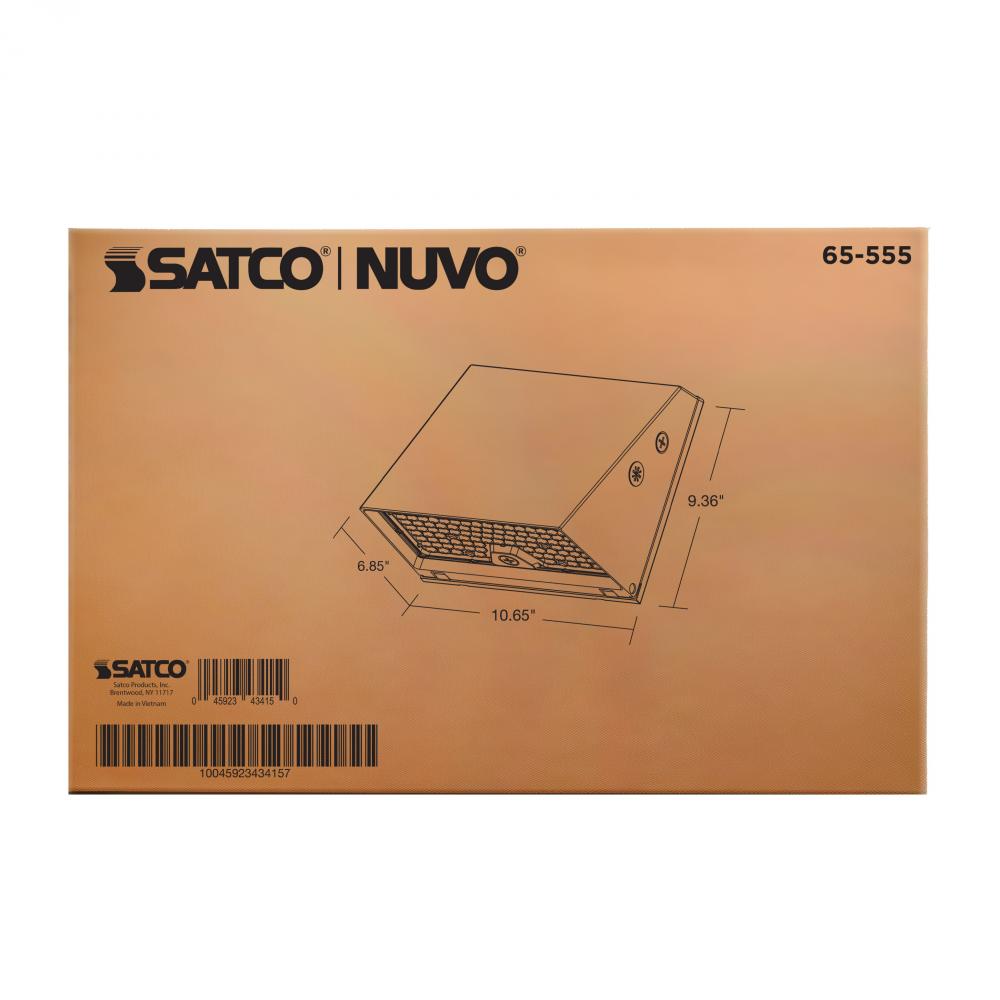

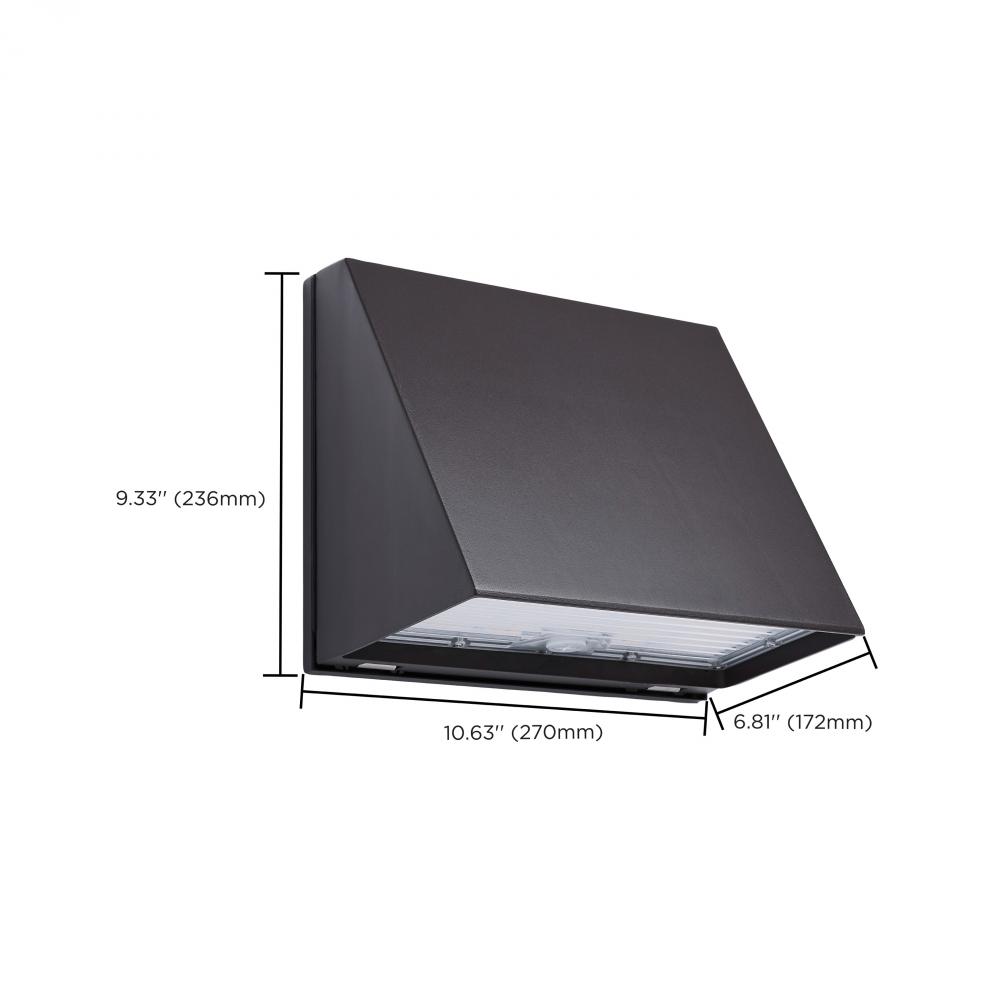

Dimensions

Height: 9.36"

Width: 10.65"

Product Overview

20/40/60 Watt LED Cutoff Wall Pack; 3K/4K/5K CCT; Field Selectable; Bronze; 120-347 Volt

Standard Information

Category:

Exterior

Subcategory:

Wall Lights

Option:

LED

Prop 65

Refinement Options

Category:

Wall Pack

Sub Category:

Full Cutoff

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Soft White to Natural Light

Dimmable:

Yes-Dimmable

Each Height:

8.460000000000001

Each Length:

13.27

Each Width:

12.64

Lumens:

3056L-8421L

Tariff Code:

9405.42.6000

Warranty:

5 Year Limited - Fixtures

Amps:

0.167-0.058/0.333-0.115/0.500-0.173A

ANSI Base:

Integrated

Beam Angle:

108

B_U_G_Rating:

B2-U0-G2

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

Vietnam

CRI:

80+

Dimmable Function:

0-10V Dimming

DLC Classification:

Premium

DLC Primary Use:

Outdoor Full-Cutoff Wall-Mounted Area Luminaires

Each Cube:

0.8212

Each Quantity:

Efficacy:

152.80-158.75/144.08-151.80/131.75-140.35 LPW

FCC Compliant:

Yes

Feature 1:

Full Cutoff with Zero Uplight

Feature 10:

5 Year Warranty

Feature 2:

B2-U0-G2 Rating

Feature 3:

CCT and Wattage Selectable

Feature 4:

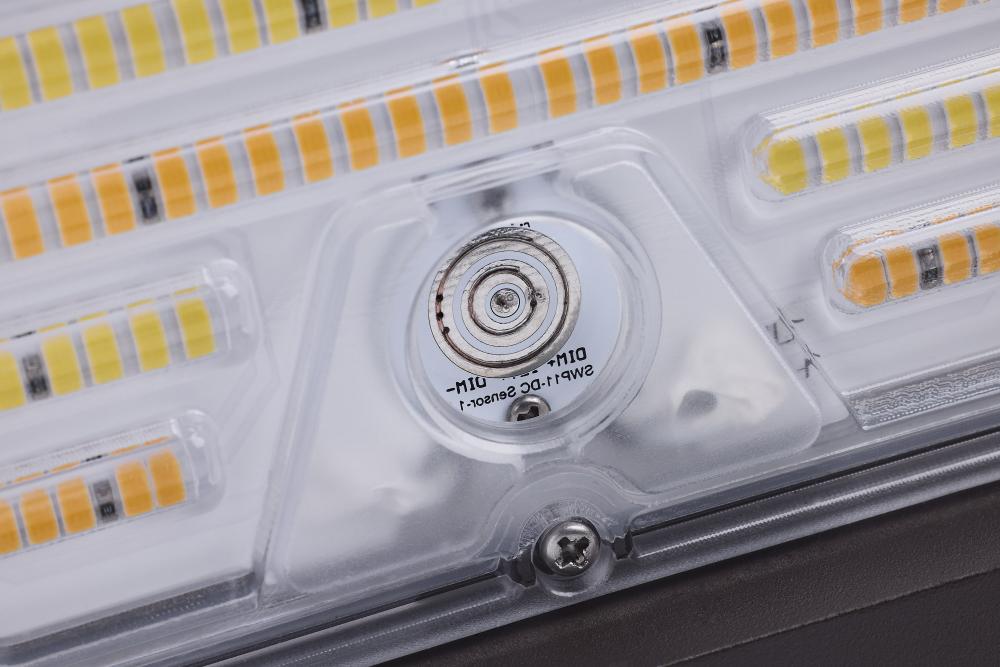

Integrated Sensor Port

Feature 5:

Integrated By-passable Photocell

Feature 6:

Range Voltage 120-347V

Feature 7:

IP65 Rated

Feature 8:

Bronze Die-Cast Aluminum Housing

Feature 9:

50,000 Hour Functional Life

Finish Family:

Bronze

Flicker Free:

Has Driver:

HID Equiv:

250W

Impact Rating (IK):

IK06

Indoor Outdoor:

Outdoor

IP Rating:

IP65

Lens Finish:

Opaque

Lens Material:

Polycarbonate (PC)

Long Description:

Illuminate outdoor spaces with SATCO NUVO's 65-555 architecturally styled LED Full Cutoff Wall Pack. Operating on 120-347V with zero up light, this fixture features wattage selectability of 20W, 40W, and 60W, delivering a maximum output of 8,421 lumens

Material:

Die-Cast Aluminum

Mounting Procedure:

Wall

Operating Frequency:

50/60Hz

Operating Temp:

-40C (-40F) to +50C (+122F)

Order In Multiples Of:

Pack Type:

Box

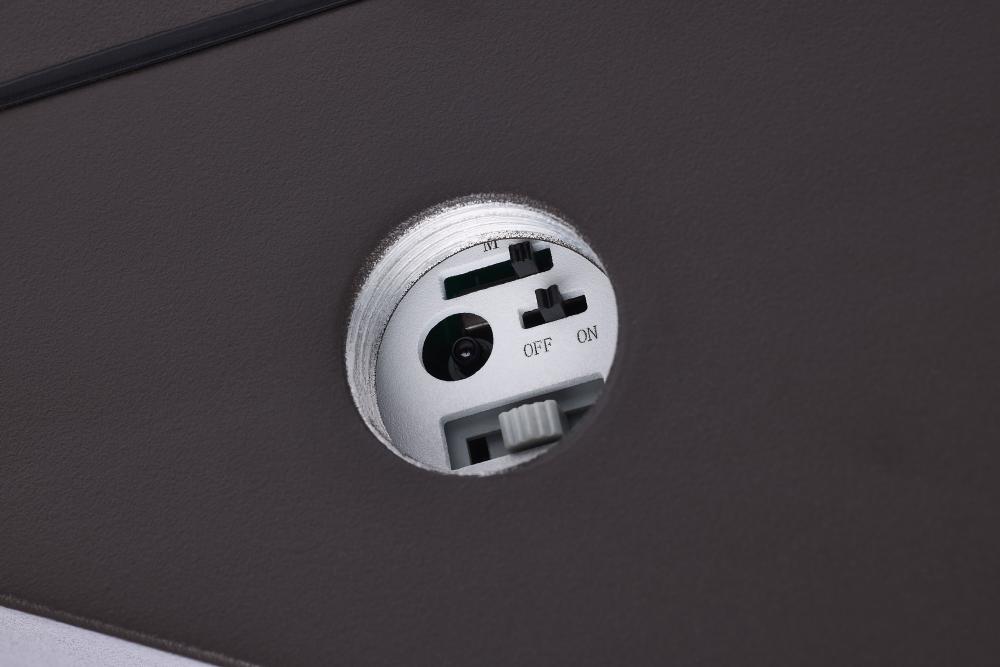

Photocell:

Yes - Bypassable

Power Factor:

>0.9

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

Illuminate outdoor spaces with SATCO NUVO's architecturally styled LED Full Cutoff Wall Packs. Operating on 120-347V with zero up light, these cutoff wall packs are perfect to eliminate wasted light and to cut down on light pollution. A by-passable pho

Safety Listing:

cULus

Sensor Operating Temperature:

-25C(-13F) to +50C (+122F)

Sensor Type:

PIR

Short Description:

LED FULL CUTOFF WALL PACK

Specification Notes:

Type II Light Distribution; For International Dark Sky Compliance the fixture CCT must be set to 3000K and installed in a downward facing and locked position

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Total Harmonic Distortion:

<20%

Wattage Selectable:

Yes

Weight Lb.:

7.94

Bulbs: (1) x Integrated
