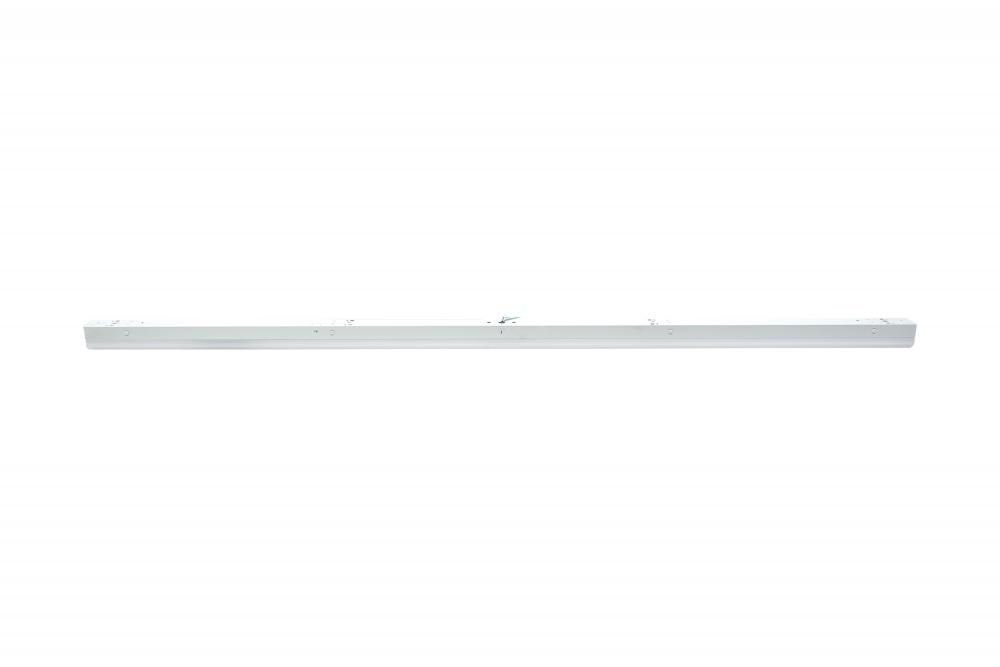

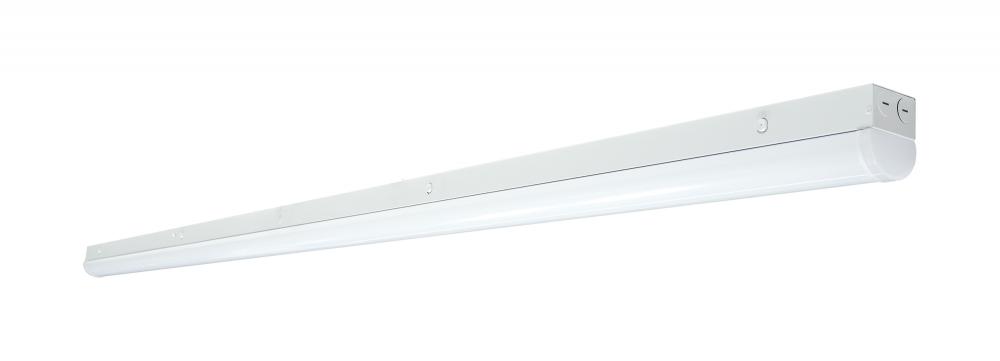

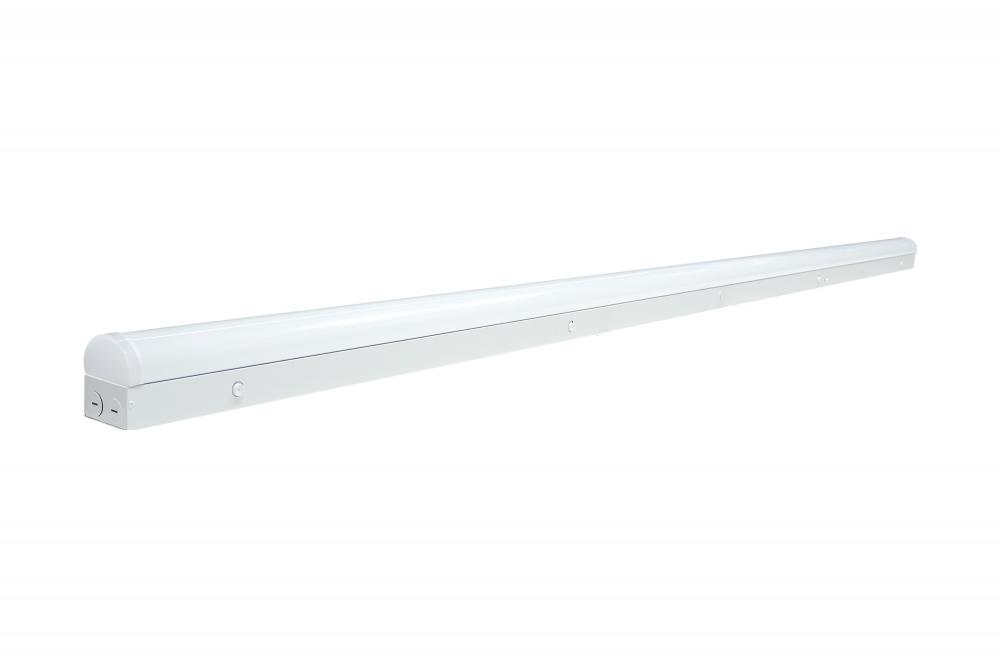

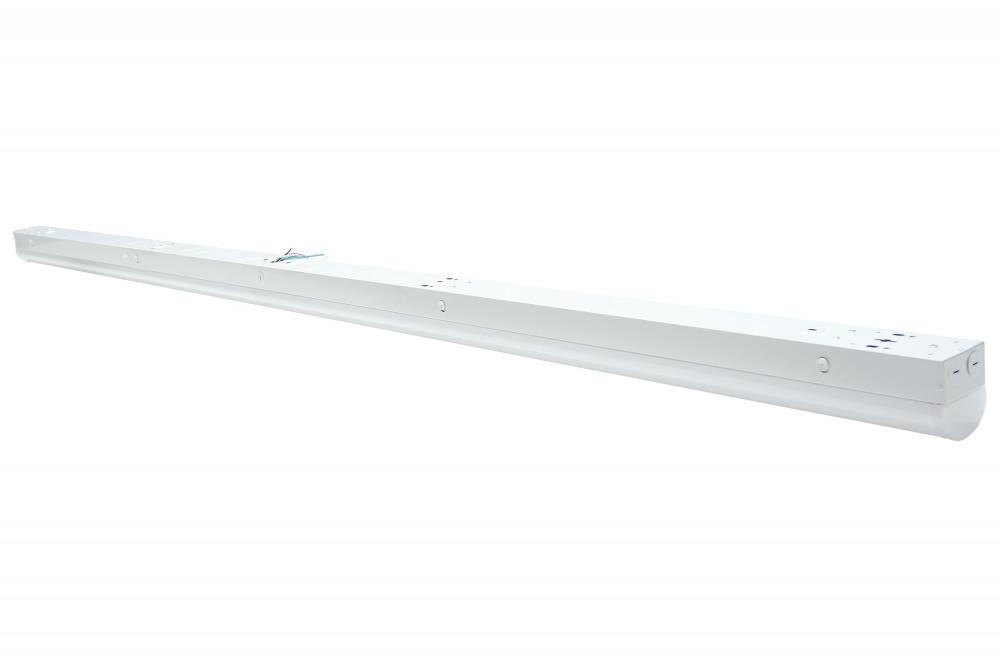

8 ft. LED; Linear Strip Light; Wattage and CCT Selectable; White Finish

Part Number: 40JCPQ4

8 ft. LED; Linear Strip Light; Wattage and CCT Selectable; White Finish

$213.94 CAD

Item Sales Info

Add To Wishlist

Compare Item

Availability

This item is not in stock with our supplier. Lead times will vary when orders are placed beyond our store availability. Please contact our team and we’ll find out more details for you!

Dimensions

Height: 3.27"

Width: 2.95"

Product Overview

8 ft. LED; Linear Strip Light; Wattage and CCT Selectable; White Finish

Standard Information

Category:

Undercabinet

Subcategory:

Strip Lights

Finish:

White

Style:

Traditional

Option:

LED

Prop 65

Refinement Options

Category:

Linear Strip

Sub Category:

Strip Fixture

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Dimmable:

Yes-Dimmable

Each Height:

5.32

Each Length:

98.03

Each Width:

5.2

Length:

Lumens:

3900L-6750L

Tariff Code:

9405.11.6010

Warranty:

5-Years

Amps:

0.250-0.108/0.333-0.144/0.417-0.181A

ANSI Base:

Integrated

Beam Angle:

120

B_U_G_Rating:

B2-U4-G2

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

Vietnam

CRI:

80+

Dimmable Down To:

100 to 10 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Premium; Premium; Standard

DLC Primary Use:

Stairwell and Passageway Luminaires; Direct Linear Ambient Luminaires; Low-Bay Luminaires for Commercial and Industrial Buildings

Each Cube:

1.5694

Each Quantity:

Efficacy:

130.00/133.13/135.00 LPW

FCC Compliant:

Yes

Feature 1:

Field Selectable (Wattage and CCT)

Feature 2:

Flicker Free Driver

Feature 3:

Multiple Mounting Options

Feature 4:

8-Foot, Standard Model

Feature 5:

Durable, Polycarbonate Lens

Feature 6:

Damp location rated

Feature 7:

Numerous Accessories Available (Sold Separately)

Feature 8:

5 Year Warranty

Feature 9:

50,000 Hour Functional Life

Finish Family:

White

Flicker Free:

Yes

Has Driver:

Yes

HID Equiv:

150W-200W

Incandescent Equivalent:

150W-175W

Indoor Outdoor:

Indoor

Installation Notes:

Maximum connected units is 10. If dimming, the dimmer max load will dicatate how many units can be on the run/control.

IP Rating:

IP20

JA8 Compliant:

Lens Finish:

White

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO NUVO's 65-702 8-foot LED Linear Strip Fixture offers adaptable lighting for diverse applications. This field-selectable fixture provides wattage options of 30W, 40W, or 50W and color temperature settings of 3500K, 4000K, or 5000K. With a universa

Material:

Steel

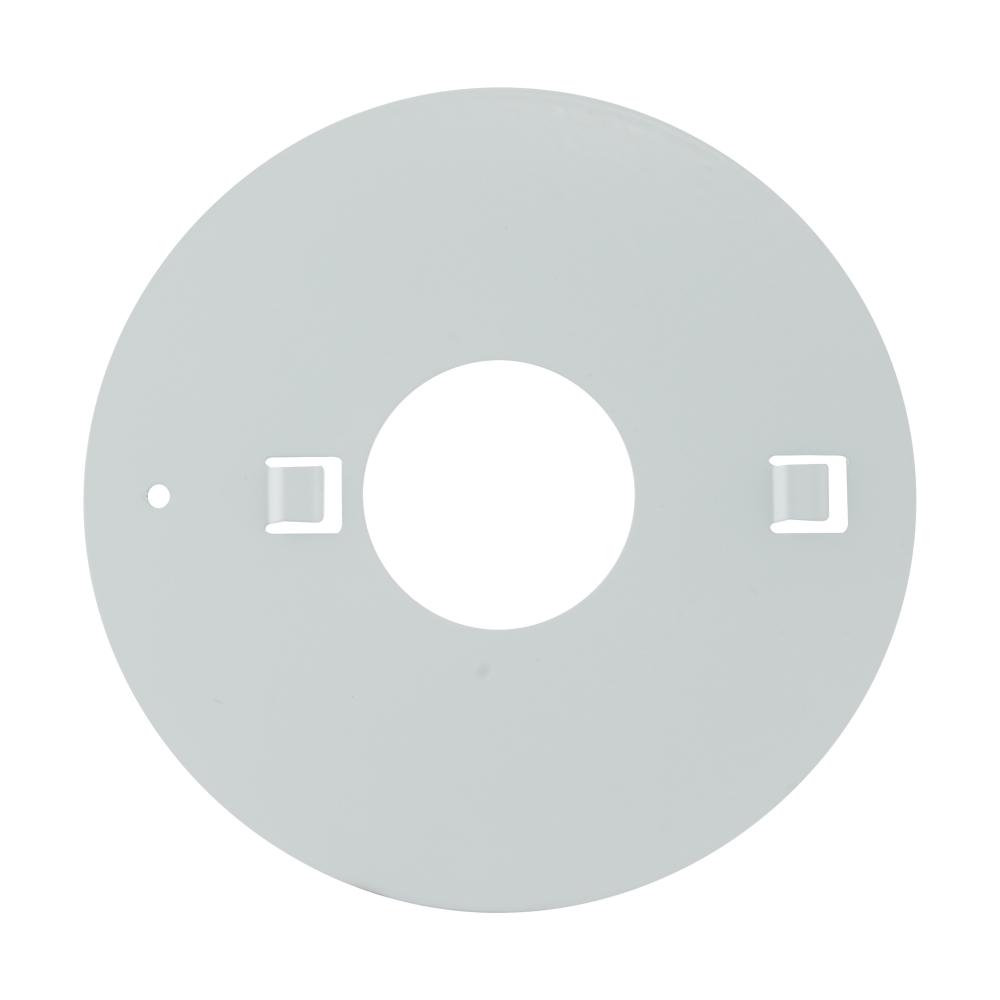

Mounting Diameter:

4.75

Mounting Procedure:

Ceiling/Wall

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +60C (+140F)

Order In Multiples Of:

Pack Type:

Box

Photocell:

Optional Add-On

Power Factor:

0.9

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO offers LED Linear Strip Fixtures in 2, 4, and 8-foot sizes, providing versatile lighting solutions for a range of applications. All fixtures are CCT selectable with 3500K, 4000K, and 5000K options, allowing users to adjust the color temperature

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Short Description:

8' LINEAR STRIP WHITE FINISH

Sloped Ceiling Compatible:

Yes

Temperature (CCT):

3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Total Harmonic Distortion:

10.77%

Wattage Selectable:

Yes

Weight Lb.:

6.84

Bulbs: (1) x Integrated
