Product Overview

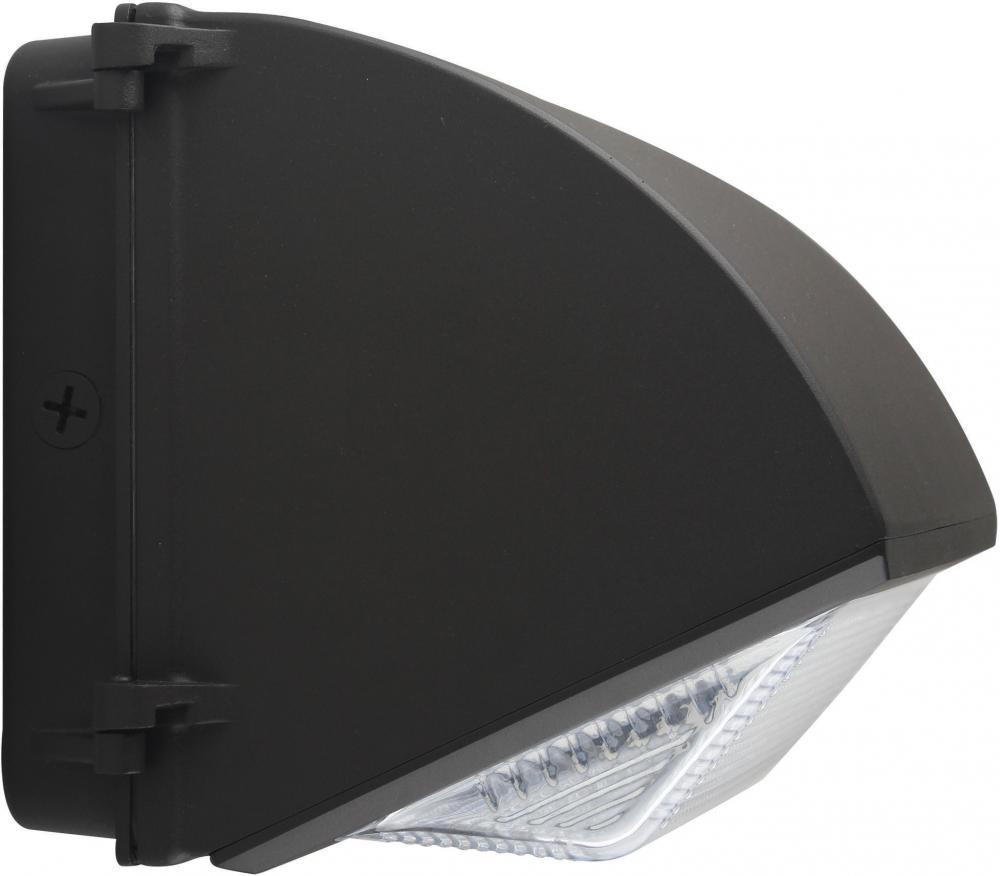

LED Cutoff Wall Pack; 35W; 4000K; Bronze Finish; 100-277V

Standard Information

Category:

Exterior

Subcategory:

Wall Lanterns

Finish:

Bronze

Option:

LED

Prop 65

Refinement Options

Category:

Wall Pack

Sub Category:

Cutoff

Style:

Utility

Additional Info:

Type II Lighting Distribution

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Cool White

Dimmable:

Non-Dimmable

Each Height:

12.6

Each Length:

15.7

Each Width:

11.8

Lumens:

4822L

Tariff Code:

9405.42.6000

Warranty:

5 Year Limited - Fixtures

Amps:

0.350-0.126A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

110

CA Prop-65:

Lead

CCT Selectable:

No

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

China

CRI:

80+

Each Cube:

1.3509

Each Quantity:

1

Efficacy:

137.77 LPW

FCC Compliant:

Yes

Feature 1:

Cool white light

Feature 2:

Commercial LED

Feature 3:

Wet rated for outdoor use

Feature 4:

W:14.50" H:9.38" E:9.88"

Feature 5:

Wall mount, Bronze

Finish Family:

Bronze

Incandescent Equivalent:

100W-150W

Indoor Outdoor:

Outdoor

IP Rating:

IP65

JA8 Compliant:

No

Long Description:

The NUVO 65-251 Cutoff 35-watt, LED Wall pack fixture offers cool white light with a 110 degree beam spread in a bronze finish. This fixture has an optional sensor available as an add-on, and is suitable for use on commercial buildings. Durable and wet loc

Mounting Procedure:

Wall

Operating Frequency:

50/60Hz

Order In Multiples Of:

1

Pack Type:

Box

Photocell:

Optional Add-On

Power Factor:

0.9

Quantity In Pack:

1

Rec Spacing Between Fixtures:

6.56 ft. to 9.84 ft.

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

The NUVO 65-251 Cutoff 35-watt, LED Wall pack fixture offers cool white light with a 110 degree beam spread in a bronze finish. This fixture has an optional sensor available as an add-on, and is suitable for use on commercial buildings. Durable and wet loc

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Short Description:

LED CUTOFF WALL PACK 35W/4K

Temperature (CCT):

4000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

20%

Wattage Selectable:

No

Weight Lb.:

8.380000000000001
